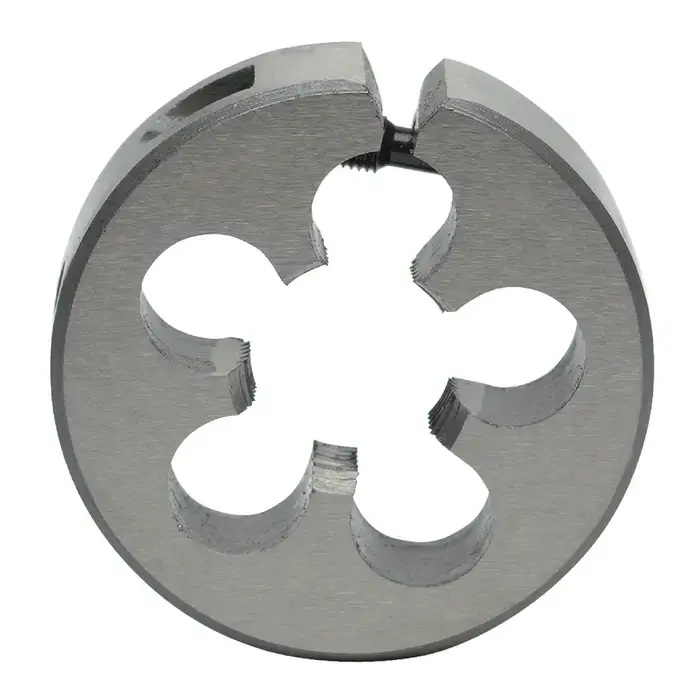

TTC 17-555-614 7/8″-14 2″ OD, Left Hand High Speed Steel Round Adjustable Die High Quality

We inventory a complete line of special thread round split adjustable dies

Applications

• For cutting standard external left hand screw threads.
• For hand or machine threading operations.
• For use in a variety of ferrous and non-ferrous materials.
• For threading rods, bolts, studs or similar applications where external threads are required.

Features

• Screw can be removed to permit adjustment through the adjusting screw in the machine holder.
• The opening on dies are chamfered on both faces.
• Constructed as slotted round cutters with an adjusting screw that forces the sides of the die apart, enabling the die to cut all standard classes of thread fit.
• Screw can be adjusted to conform to the variety of H limits.
• For an easier start, use the longer taper chamfer.
• Use the shorter taper chamfer to cut threads closert to a shoulder.
