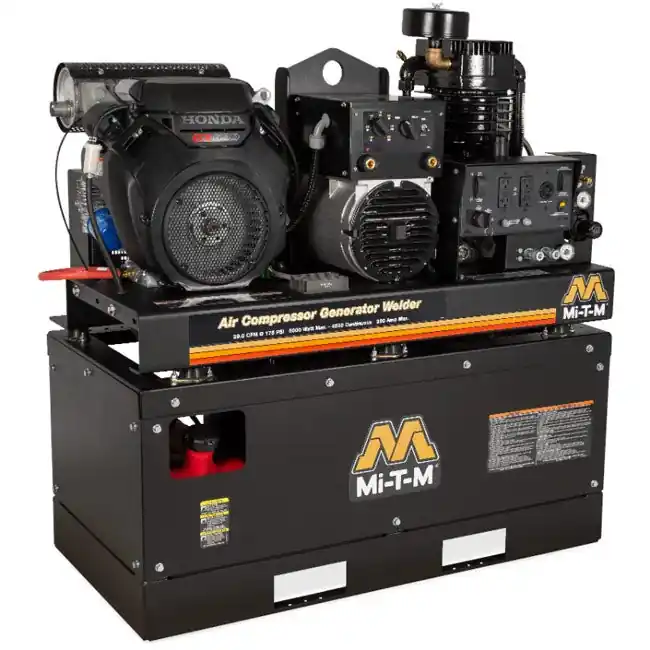

Mi-T-M AGW-SH22-20M – Two Stage Gasoline 20-Gallon Air Compressor / Generator / Welder

MODEL: AGW-SH22-20M

AGW-SH22-20M

This AGW Series combines an air compressor, generator and welder into one machine, making it the complete on-site unit to efficiently tackle numerous jobs at once.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator
Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder
Amperage selection switch, 170A or 220A maximum

Frame
Powder coated ASME receiver tank · Powder coated four-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16 1/2-inch fly wheel

AGW Series Operation
Generator Mode
AC current only · Selector switch set to idle down · Switch is set to full throttle

Welder Mode
DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

Note: All gasoline MODEL:s sold in California are required to have a CARB compliant engine. Consult factory.
All MODEL:s sold in California are required to have the AX-0080 CARB compliant fuel tank.
Equipped with 150-PSI maximum rated regulator.

Optional Accessoriess (Not Included)

IX-0001 Vibration Isolator Pads – Isolators protect the unit from vibration during use; recommended for MODEL:s that are mounted in service truck applications

AX-0080 California Compliant Fuel Tank – Replaces the EPA plastic fuel tank with a CARB approved painted steel tank; required for California MODEL:s

Specifications

Displacement/ Engine: 688cc Honda GX690 OHV with Electric Start – Battery Cables Included; Battery Not Included

Rated Speed: 3600 RPM

CFM @ 90 PSI: 30.5

CFM @ 175 PSI*: 29.0

Tank Size: 20-gallon

Max. AC Output: 5000 watts

Rated AC Output: 4500 watts

Alternator Wattage: Cont. On-Load @ 90 PSI: 4500 watts

Alternator Wattage: Cont. On-Load @ 175 PSI: 4500 watts

Frequency/Voltage: 60Hz/120V/240V

Max. Amps (120V/240V): 41.5/20.8

Cont. Amps (120V/240V): 37.5/18.8

Receptacles: (2) 120V, 20A GFCI Duplex; (1) 120V/240V, 20A Twist Lock

Duty Cycle (10 Min. Run Time): 220A @ 40%, 190A @ 60%, 150A @ 100%

DC Voltage: 50-220A Working Range

Fuel Tank: 10-gallon

Net Weight: 803.00 lbs.

Shipping Weight: 870.00 lbs.

Length: 47.00 in.

Width: 24.00 in.

Height: 50.00 in.
