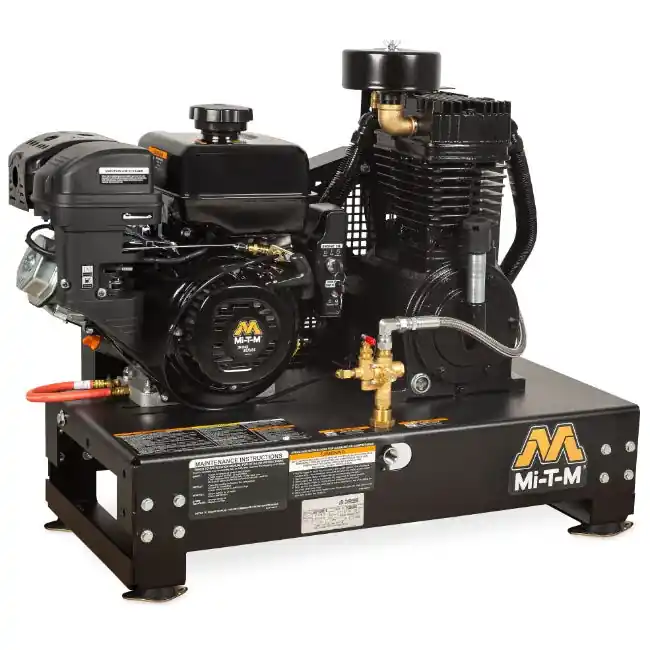

Mi-T-M AM2-SM09-B – Base-Mount Two Stage Gasoline Air Compressor

MODEL AM2-SM09-B

AM2-SM09-B

Designed with a powder coated ASME receiver tank, you will experience proven performance from the base-mount air compressor time after time.

Compressor Pump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader

Equipped with 150-PSI maximum rated regulator.
Equipped with electric start – battery, box and cables not included.

Accessories (Not Included)

OPTIONS: Options must be ordered with unit and cannot be added later. (Not all are Included) add options in the notes at checkout

AX-0003 Manual Drain/Regulator/Metal Bowl – Drains moisture from air system

AX-0017 Electric Start – For easy starting – sealed battery, tray, box and cables included

AX-0077 Battery Box and Tray – Attaches to engine side of unit

Specifications

CFM @ PSI: 17.2 @ 175

Displacement/ Engine: 300cc Mi-T-M OHV

Tank Size: Base-Mount

Engine Idle Control: Cable Throttle

Net Weight: 309.00 lbs.

Shipping Weight: 379.00 lbs.

Length: 36.50 in.

Width: 21.00 in.

Height: 32.00 in.
