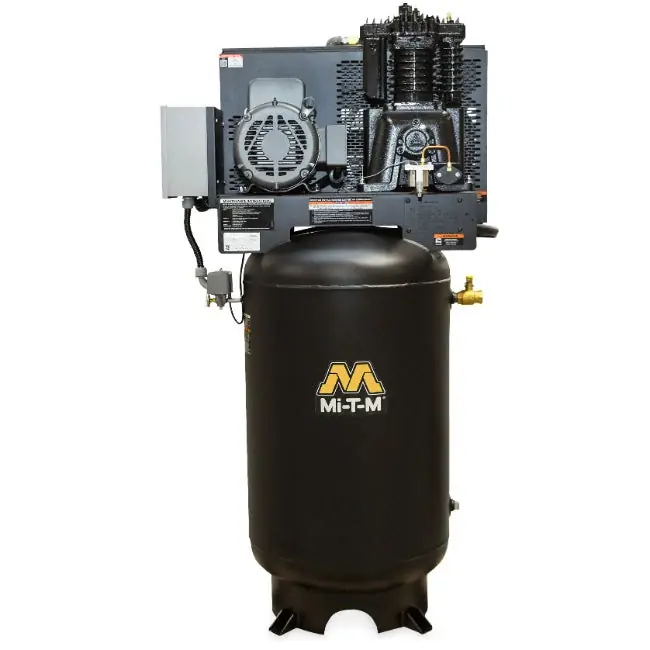

Mi-T-M ACS-23175-80VM Air Compressor 230V, 1 Ph, 31A Direct From Factory

Mi-T-M ACS-23175-80VM – 230V, 1Phase, 31.0A – ACS M Series 7.5 HP Simplex Vertical – 80-Gallon Air Compressor

MODEL ACS-23175-80VM

80-Gallon

ACS M Series – 7.5 HP Simplex Vertical

The M Series air compressors are available in many motor configurations and offer maximum air power day-in and day-out.

CompressorPump
Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil lever sight indicator

Motor
Industrial low RPM motor · Magnetic start for thermal overload protection

Frame
Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard

Components
ASME safety valves · Tank pressure gauge · Hour meter · Large fly wheel · Intake filter/silencer · Tank shut-off valve

Models Available
ACS-23175-80VM 230V, 1Phase, 31.0A 706 lb. ship wt./634 lb. net wt.
ACS-20375-80VM 200V, 3Phase, 23.0A 691 lb. ship wt./619 lb. net wt.
ACS-23375-80VM 230V, 3Phase, 20.0A 690 lb. ship wt./618 lb. net wt.
ACS-46375-80VM 460V, 3Phase, 10.0A 690 lb. ship wt./618 lb. net wt.

Accessories (Not Included)

Specifications

CFM @ PSI: 23.5 @ 175

Pump RPM: 1250

Tank Size: 80-gallon

Bolt Down (LxW): 15.63 x 15.63 in.

Net Weight: 634 lb.

Shipping Weight: 706 lb.

Length: 33.00 in.

Width: 25.00 in.

Height: 73.00 in.
