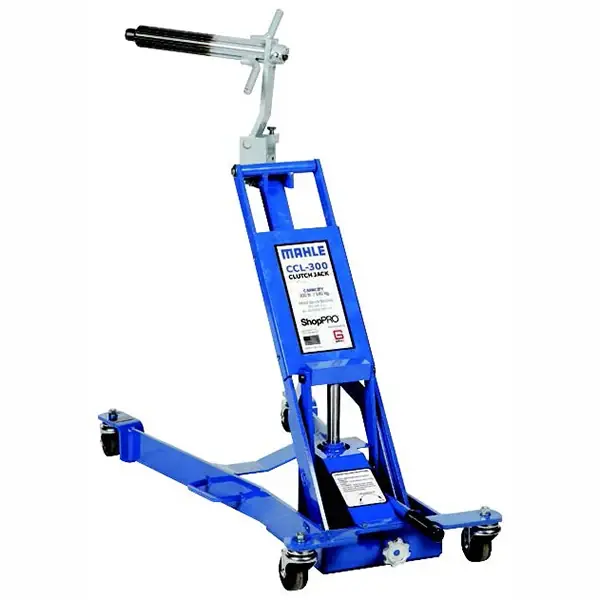

Mahle CCL-300 – 300 lb. Commercial Vehicle Clutch Jack New Release

Mahle CCL-300 – 300 lb. Commercial Vehicle Clutch Jack

MODEL CCL-300

Part Number: 485 80044 00

300 lb lifting capacity

360° rotating head allowing flexibility and convenience during installation and removal of clutches

Hydraulic power system provides precise adjustment and the swivel casters permit easy movement

Fold back feature allows technicians to easily remove the jack from underneath the vehicle

Optional adapters are available to make other common jobs easier and safer

US Patent #6,189,864,B1

Recommended Accessories

Part Number: 485 80046 00 Brake Drum Adapter

Part Number: 485 80047 00 2 1/4″ Spline

Part Number: 485 80045 00 12″ Height Adapter

Part Number: 485 80043 00 1 3/4″ Spline

Part Number: 485 80049 00 Trailer/Evap Tray * for use with CCL-300H

Part Number: 485 80050 00 Battery/Compressor Adapter * for use with CCL-300H

Specifications

Capacity 300 lb (136 kg)

Minimum Start Height 15 in (38 cm)

Maximum Lift Height 39 in (99 cm)

Dimensions (W x L) 22 in x 41 in (56 cm x 104 cm)

Supplied Spline Shaft 2 in (5 cm)

Head Rotation 360°

Shipping Weight 134 lb (61 kg)
