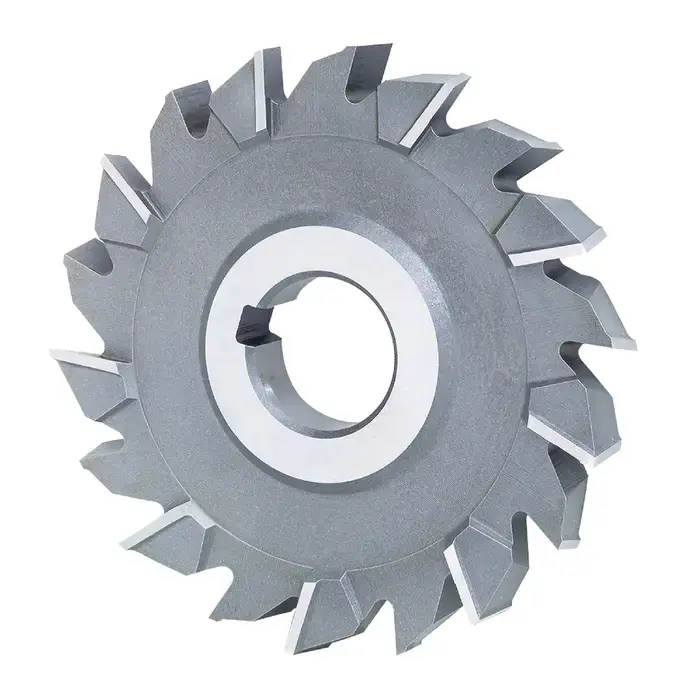

KEO N02150 6″ Size, 1″ Face Width, 28 Teeth High Speed Steel Side Milling Cutter Free Returns

Provides great chip clearance and reduced chatter

Applications

• For milling deep slots, grooves and other operations where either or both the peripheral or side cutting edges are used for machining.
• For heavy duty side cutting and straddle milling operations.
• Designed as arbor mounted cutters for machine tools.
• Well suited for use in a variety of ferrous and non-ferrous materials.
• For optimal performance and the best tool life the correct cutting speeds and feeds must be used and suitable lubricating/cutting oils or appropriate coolant fluids are recommended.

Features

• With both peripheral and staggered side cutting teeth.
• Sized and proportioned to afford a good cutting range and ample rigidity.
• Staggered tooth design with interlocking feature for gang milling set-ups.

Technical Data

• Manufactured from high speed steel.
• Ground from solid.
• Teeth on periphery and staggered teeth on both sides.
• Teeth have a 10° positive radial rake and 10° positive left/right alternating axial rake.
• Bright and black finish.

Notes

• All cutters with the same number of teeth and arbor hole interlock regardless of diameter. By grinding the hubs two or more staggered tooth side mills may be interlocked.
• The number of possible combinations is unlimited. The same cutter may be used for a variety of applications in combination with other cutters in a gang, singly for slotting or straddle milling, interlocked for special width slots.
