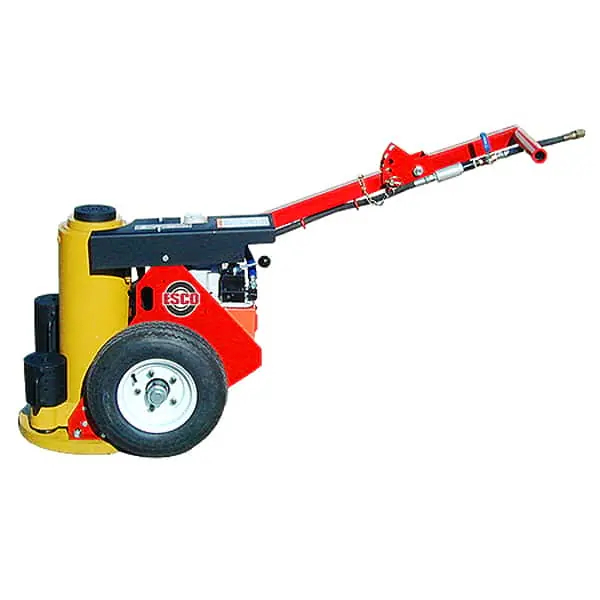

ESCO 10321 Jumbo Jack, 150T, Minimum Height 36″, 22-3/8″ Stroke Price Cut

ESCO 10321 Jumbo Jack, 150T, Minimum Height 36″, 22-3/8″ Stroke

MODEL# 10321

Model #10321 – The ESCO Jumbo Jack Series, with a lifting capacity of 150 tons, is designed for various heavy-duty applications. These air/hydraulic powered jacks are balanced for easy mobility and equipped with lift extension saddles for adjustable lifting heights. With features like large pneumatic wheels and a sturdy construction, they are ideal for mining, construction, and railroad operations.

Key Features:

Model #10321 – 150-ton lifting capacity for heavy-duty applications

Balanced design with large pneumatic wheels for easy mobility

Lift extension saddles for adjustable lifting heights

Suitable for mining, construction, and railroad operations

Air/hydraulic powered for efficient lifting

Sturdy construction for durability

Compact size for tight clearance areas

Ideal for Giant Tire Changing, Mining, Railroads, and Construction Rigging

Balanced for easy moving with large pneumatic wheels

Minimum 90 to 150 psi air supply needed to power hydraulic pump

50″ long, 8 position handle for easy maneuvering

All Jumbo Jacks come with 1″ saddle, 5″ & 9″ extensions (Locking Rings Sold Separately)

Available Accessories:

Specifications

Lifting Capacity: 150 Ton

Air Pressure: 90-150 PSI

Stroke: 22.4 in. (596mm)

Min. Height: 36 in. (914mm)

Max. Height*: 58.38 in. (1482mm)

*Maximum Height Without Extensions

Handle Length: 50 in. (1270mm)

Width: 23 in. (584mm)

Weight: 920 lbs. (417 kg)

Warranty: 1 Year
