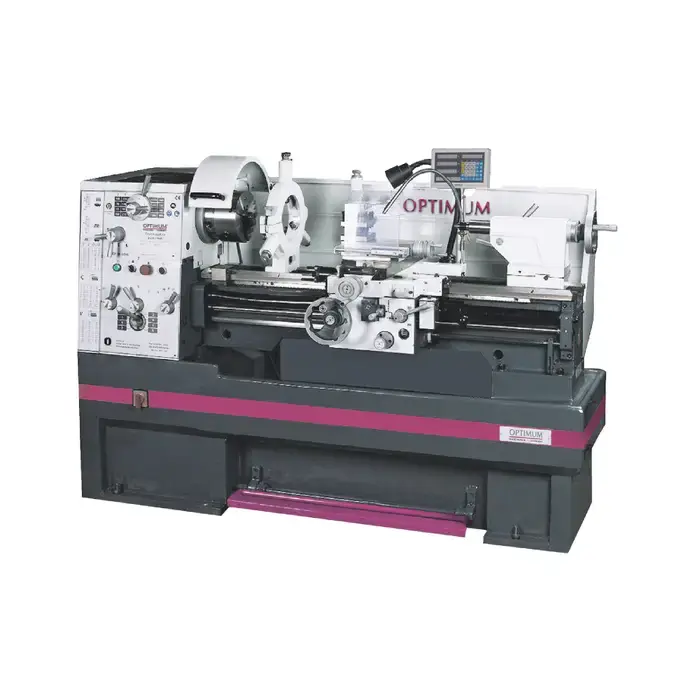

Cheap PALMGREN D420X1500DPA 16″ Swing Over Bed 60″ Distance Between Centers Engine & Toolroom Production Lathe

Heavy cast construction, smooth power transmission with hardened and precision ground gears, hardened and ground ways all designed to give you years of trouble-free, precise turning. All Optimum lathes are built and inspected to the DIN 8606 toolmakers precision lathe standard assuring accuracy and consistent performance. Ultimate in turning machines

Benefits

• Manufactured according to DIN 8606 (toolmaker’s precision).
• Heavily ribbed prismatic bed made of grey cast iron, inductively hardened and precision-ground.
• Electrical system with Siemens components.
• DPA 2000 3-axis, DRO X, Z + Zo (Zo = compound).

Applications

• Ideal for turning applications requiring heavy metal removal or fine tolerance finishing applications.

Features

Main Spindle

• Hardened and ground slideways.
• Oil-quenched hardened work spindle.
• Run on 2 adjustable precision taper roller bearings.
• Emergency-Stop switch, motor protective switch and lockable main switch.
• Guaranteed concentricity precision of the spindle nose less than 0.015mm.

Main Spindle Gearbox

• Gears and shafts are case hardened and ground running on precision bearing.
• Smooth running, hardened and ground gears.
• Quick action feed gear lever.

Slide

• Precisely machined.
• Carriage stop with fine adjustment.
• Chip guard at the tool post.
• Hand wheels with adjustable precision inch/mm dials.
• 4 position tool post holder.
• Right/-left-hand rotation can be switched with ON/OFF control handle.
• Quick action feed gear lever.
• Safety mechanism prevents simultaneous engagement of lead screw drive and feed shaft drive.

Guides

• All guides adjustable via tapered gibs.

Bed Bridge

• Removable bed insert.

Halogen Machine Lamp

• Goose neck arm.
• High positioning stability.

Coolant Equipment

• Adjustable hose with snap on/off segments.
• Adjustable flow valve.

Prismatic Bed

• Heavily ribbed.
• Grey cast iron.
• Inductively hardened.
• Precision ground.

Tailstock

• Adjustable by ± 13mm / 0.511″ for taper turning.
• Tailstock spindle sleeve and hand wheel with adjustable precision scale of 0.025mm / 0.010″.

Base

• Meehanite one-piece casting.
• Foot pedal spindle brake.

Ships direct from factory.

Includes

Comes Standard With:

• 3 jaw and 4 jaw lathe chuck.
• Safety chuck and tool post guards.
• Steady rest.
• Follow rest.
• Dead centers.
• Halogen work light.
• Spindle brake.
• Thread chasing dial.
• Splash guard.
• Flood coolant system.
• DRO.

Technical Documents & Manuals

• Operation Manual
