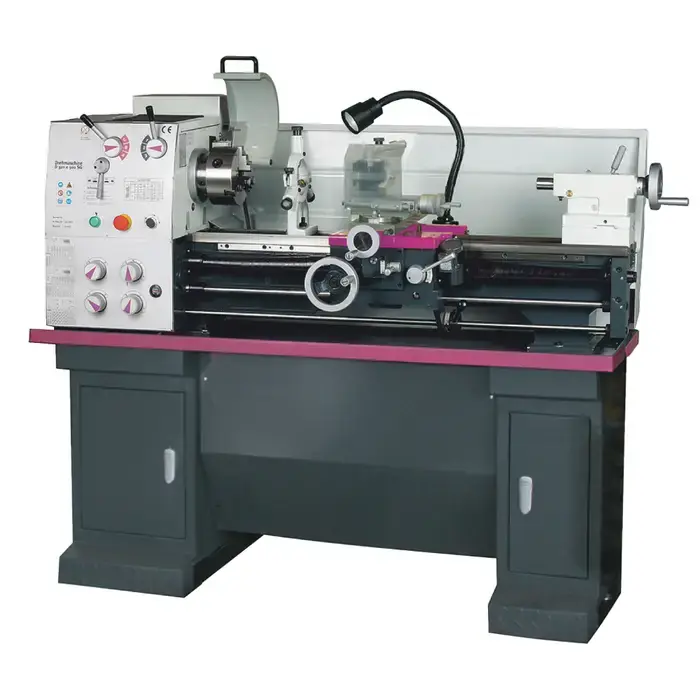

Buy Online PALMGREN D320X920 12″ Swing Over Bed 36″ Distance Between Centers Engine & Toolroom Production Lathe

Machine Shop Solutions

Problem: Standard lathe designs may not hold up to the wear and tear of large production manufacturing. Solution: A prism-based heavy-duty design offers durable cast iron construction matched with versatile multi-material performance. Don’t settle when you can have trouble-free precision turning that features heavy cast construction, smooth power transmission with hardened and precision ground gears, and hardened and ground ways. Built and inspected to the DIN 8606 precision lathe standards assuring accuracy and consistent performance.

Benefits

• Manufactured according to DIN 8606 standards.
• Heavily ribbed prismatic bed made of grey cast iron, inductively hardened and precision-ground.
• Electrical system with Siemens components.

Applications

• Delivers the precision, power and versatility to handle a wide range of turning operations normally found in larger machines.

Features

Main Spindle

• Hardened and ground slideways.
• Oil-quenched hardened work spindle.
• Run on 2 adjustable precision taper roller bearings.
• Emergency stop switch, motor protective switch and lockable main switch.

Main Spindle Gearbox

• Gears and shafts are case hardened and ground running on precision bearings.
• Smooth running, hardened and ground gears.
• Quick change feed gearbox.

Slide

• Precisely machined.
• Chip protection guard at the tool post.
• Hand wheels with sdjustable high precision dials.
• 4 position tool post holder.
• Right/left-hand rotation can be switched with ON/OFF control handle.

Guides

• All guides adjustable via tapered gibs.

Bed Bridge

• Removable bed insert.

Halogen Machine Lamp

• Gooseneck arm.
• High positioning stability.

Prismatic Bed

• Heavily ribbed.
• Inductively hardened.
• Precision ground.

Tailstock

• Adjustable by 0.393″ / ±10 mm for taper turning.
• Tailstock spindle sleeve and hand wheel with adjustable precision scale of 0.010″ / 0.025mm.

Base

• Not mounted – assembly required.
• Lockable doors.

Ships direct from factory.

Includes

Comes Standard With:

• 3 jaw and 4 jaw lathe chuck.
• Safety chuck and tool post guards.
• Steady rest.
• Follow rest.
• 4 way tool post.
• Dead centers.
• Halogen work light.
• Heavy duty steel floor stand.
• Splash guard and chip tray.
• Precision thrust and ball bearings in the head stock.

Technical Documents & Manuals

• Operation Manual
